Elasticsearch

on Rails

Vlado Cingel / vlado@cingel.hr

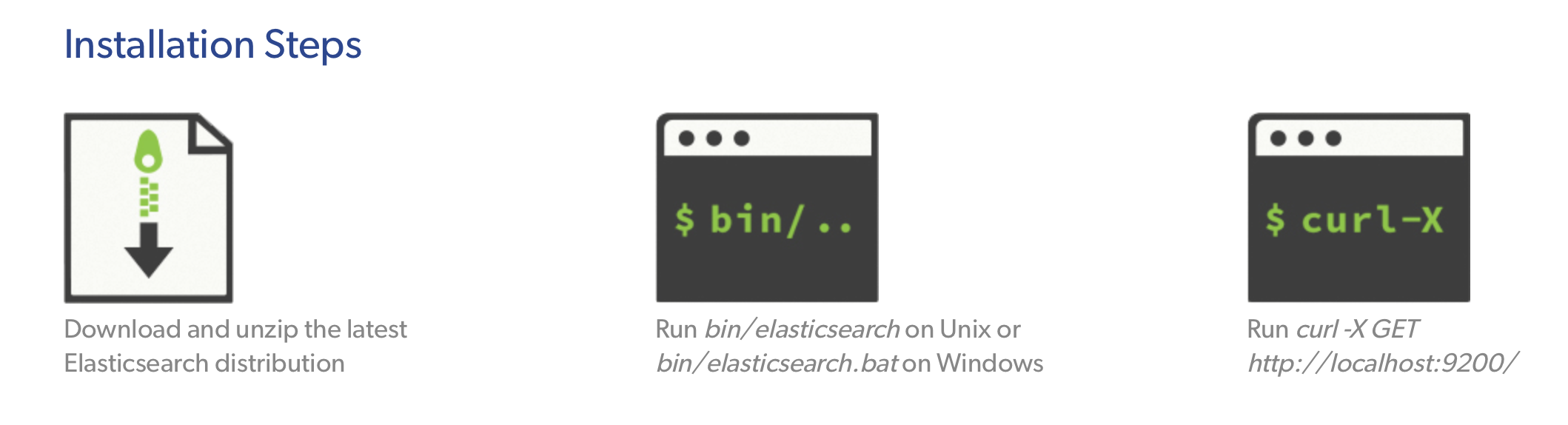

Installation

Installation on OSX

brew install elasticsearch

Putting Elasticsearch on Rails

gem install foreman
http://blog.daviddollar.org/2011/05/06/introducing-foreman.html
# {Rails.root}/Procfile
web: rails server
eleasticsearch: /path/to/elasticsearch/binary

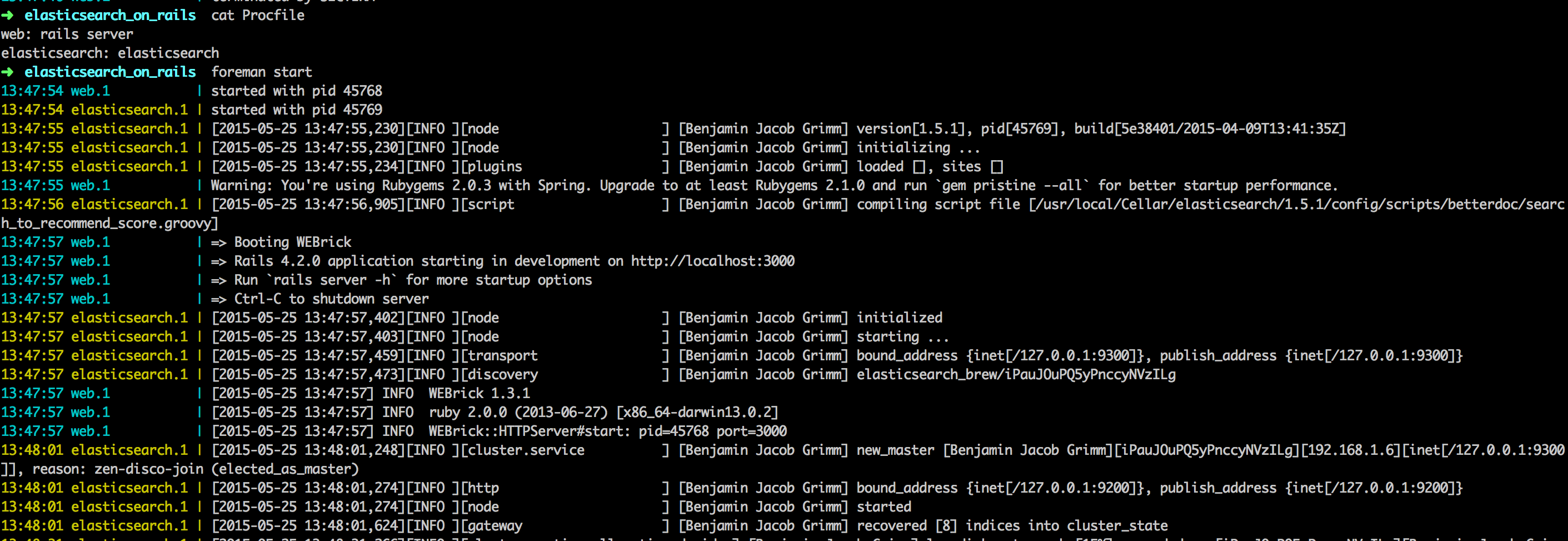

foreman start

Ruby libs

* (Re)Tire
Renamed and retired in September 2013. Not compatible with Elasticsearch 1.x.
* elasticsearch-ruby
Official Ruby client. elasticsearch-transport + elasticsearch-api

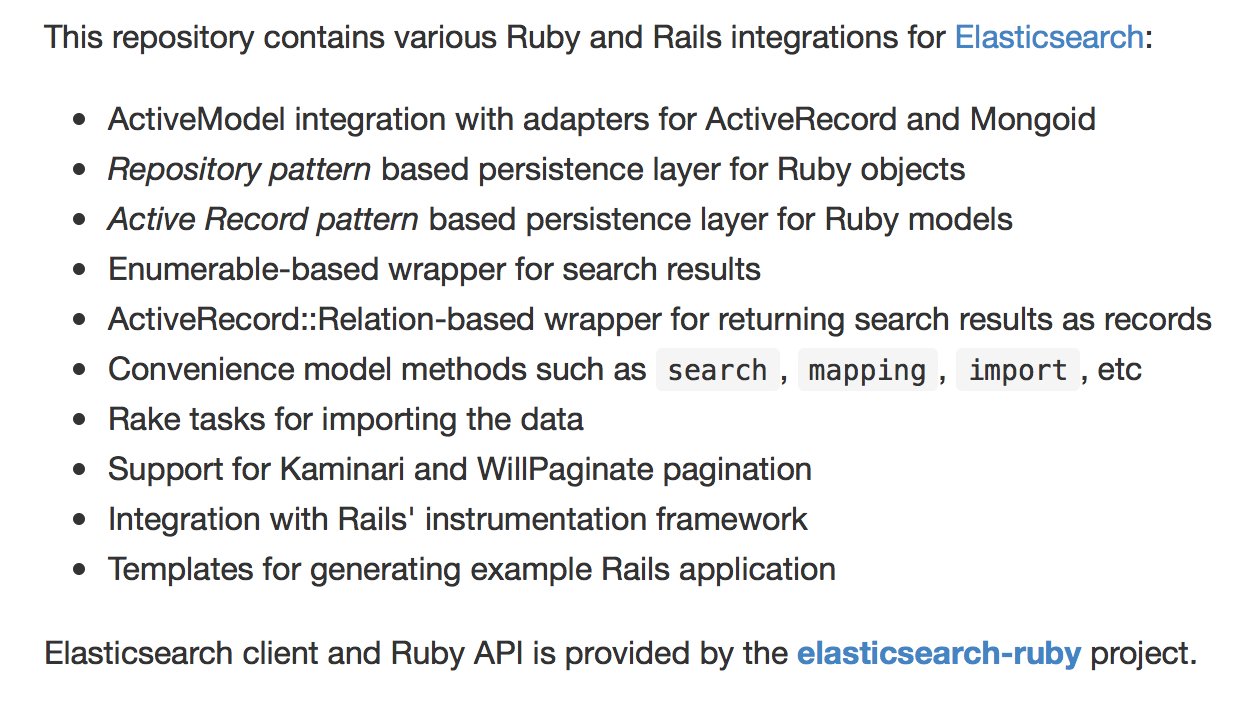

* elasticsearch-rails
Various Ruby and Rails integrations for Elasticsearch
* Chewy
High-level Elasticsearch Ruby framework based on the official elasticsearch-ruby client

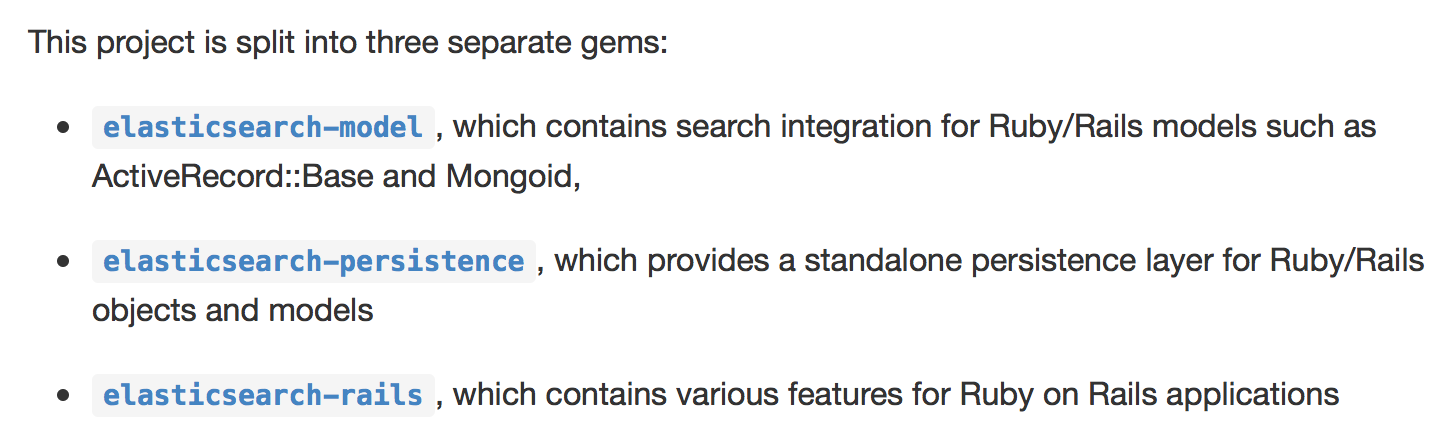

elasticsearch-rails

elasticsearch-rails

elasticsearch-rails

Rake tasks
# lib/tasks/elasticsearch.rake
require 'elasticsearch/rails/tasks/import'
$ rake elasticsearch:import:model CLASS='Article'
$ rake elasticsearch:import:model CLASS='Article' SCOPE='published'
ActiveSupport Instrumentation
# config/application.rb
require 'elasticsearch/rails/instrumentation'
Article Search (321.3ms) { index: "articles", type: "article", body: { query: ... } }

elasticsearch-persistence

Provides persistence layer for Ruby domain objects

It supports two design patterns for integrating with your objects: Repository and Active Record.

elasticsearch-persistence

Repository

class Note
  attr_reader :attributes

  def initialize(attributes={})
    @attributes = attributes
  end

  def to_hash
    @attributes
  end
end
require 'elasticsearch/persistence'
repository = Elasticsearch::Persistence::Repository.new

elasticsearch-persistence

Repository

note = Note.new id: 1, text: 'Test'

repository.save(note)
# PUT http://localhost:9200/repository/note/1
# > {"id":1,"text":"Test"}
# < {"_index":"repository","_type":"note","_id":"1","_version":1,"created":true}

n = repository.find(1)
# GET http://localhost:9200/repository/_all/1
# < {"_index":"repository","_type":"note","_id":"1","_version":2,"found":true, "_source" : {"id":1,"text":"Test"}}
=> <Note:0x007fcbfc0c4980 @attributes={"id"=>1, "text"=>"Test"}>

repository.search(query: { match: { text: 'test' } }).first
# GET http://localhost:9200/repository/_search
# > {"query":{"match":{"text":"test"}}}
# < {"took":2, ... "hits":{"total":1, ... "hits":[{ ... "_source" : {"id":1,"text":"Test"}}]}}
=> <Note:0x007fcbfc1c7b70 @attributes={"id"=>1, "text"=>"Test"}>

repository.delete(note)
# DELETE http://localhost:9200/repository/note/1
# < {"found":true,"_index":"repository","_type":"note","_id":"1","_version":3}
=> {"found"=>true, "_index"=>"repository", "_type"=>"note", "_id"=>"1", "_version"=>2}

elasticsearch-persistence

Active Record

class Article
  include Elasticsearch::Persistence::Model

  # Define a plain `title` attribute
  attribute :title,  String

  # Define a `views` attribute, with default value
  attribute :views,  Integer, default: 0, mapping: { type: 'integer' }

  # Validate the presence of the `title` attribute
  validates :title, presence: true

  # Execute code after saving the model.
  after_save { puts "Successfully saved: #{self}" }
end

elasticsearch-persistence

Active Record

article = Article.new
# => #<Article { ... }>

article.valid?
# => false

article.errors.to_a
# => ["Title can't be blank"]
Article.create id: 1, title: 'Test', author: 'John'
# PUT http://localhost:9200/articles/article/1 [status:201, request:0.015s, query:n/a]

article = Article.find(1)
# => #<Article { ... }>

article.id
# => "1"

article.title
# => "Test"

elasticsearch-model

class Article < ActiveRecord::Base
  include Elasticsearch::Model
end

Article.import

response = Article.search("fox dogs")

response.results
# => [#<Elasticsearch::Model::Response::Result:0x007 ... "_source"=>{"title"=>"Quick brown fox"}}>]

response.records.to_a
# Article Load (0.3ms)  SELECT "articles".* FROM "articles" WHERE "articles"."id" IN (1, 2)
# => [#<Article id: 1, title: "Quick brown fox">, #<Article id: 2, title: "Fast black dogs">]


In most situation, you'll want to pass the search definition in the Elasticsearch domain-specific language to the client

{
  "query" : { "match" : { "title" : "Fox Dogs" } },
  "highlight" : { "fields" : { "title" : {} } }
}
Elasticsearch DSL
response = Article.search(
  query:     { match:  { title: "Fox Dogs" } },
  highlight: { fields: { title: {} } }
)

response.results.first.highlight.title
# ["Quick brown <em>fox</em>"]
elasticsearch-model

Index configuration

class Article < ActiveRecord::Base
  include Elasticsearch::Model

  index_name: "articles-#{Rails.env}"

  settings index: { number_of_shards: 1 } do
    mappings dynamic: 'false' do
      indexes :title, analyzer: 'english', index_options: 'offsets'
    end
  end

  ...
end

Automatic Callbacks

class Article < ActiveRecord::Base
  include Elasticsearch::Model
  include Elasticsearch::Model::Callbacks
end
Article.first.update_attribute :title, 'Updated!'

Article.search('*').map { |r| r.title }
# => ["Updated!", "Lime green frogs", "Fast black dogs"]
In case you would need more control of the indexing process, you can implement these callbacks yourself, by hooking into after_* callbacks

Model serialization

Method as_indexed_json is defined automatically by the Elasticsearch::Model::Serializing module.

Just implement the as_indexed_json yourself to define custom serialization

class Article
  include Elasticsearch::Model

  def as_indexed_json(options={})
    { title: "title", author: author.name }
  end
end

Personal experience

# app/models/physician.rb
class Physician < ActiveRecord::Base
  include Elasticsearch::Model

  ANALYSIS_SETTINGS = { ... }
  index_name "appname-physicians-#{Rails.env}"
  after_commit :refresh_elasticsearch_index

  settings index: { analysis: ANALYSIS_SETTINGS } do
    mappings dynamic: false do
      indexes :first_name, index_analyzer: "autocomplete", search_analyzer: "standard"
      indexes :last_name, index_analyzer: "autocomplete", search_analyzer: "standard"
      # ...
    end
  end

  def as_indexed_json(options: {})
    {
      id: id,
      first_name: first_name,
      primary_specialization_name: primary_specialization.name
      # ...
    }
  end

end

Feature Extraction Pattern

# app/models/physician/elastically_searchable.rb
class Physician
  module ElasticallySearchable
    extend ActiveSupport::Concern

    included do
      include Elasticsearch::Model
      ANALYSIS_SETTINGS = { ... }
      index_name "appname-physicians-#{Rails.env}"
      after_commit :refresh_elasticsearch_index
      # ...
    end

    def as_indexed_json(options: {})
      # ...
    end
  end
end
# lib/elasticsearch_support.rb
module ElasticsearchSupport
end
# lib/elasticsearch_support/elastically_searchable_active_record.rb
module ElasticsearchSupport
  module ElasticallySearchableActiveRecord
    extend ActiveSupport::Concern

    included do
      include Elasticsearch::Model
      # ...
    end
  end
end
# app/models/physician/elastically_searchable.rb
class Physician
  module ElasticallySearchable
  extend ActiveSupport::Concern
  include ElasticsearchSupport::ElasticallySearchableActiveRecord
  # ...
end


Custom callbacks

# lib/elasticsearch_support/elastically_searchable_active_record.rb
module ElasticsearchSupport
  module ElasticallySearchableActiveRecord
    extend ActiveSupport::Concern

    included do
      include Elasticsearch::Model
      after_commit :refresh_in_elasticsearch, on: [:create, :update]
      after_commit :remove_form_elasticsearch, on: :destroy
    end

    def elastically_searchable?
      fail NotImplementedError.new("You must define 'elastically_searchable?' method")
    end

    private
    def refresh_in_elasticsearch
      ElasticsearchSupport::RefreshDocumentJob.perform_later(self)
    end

    def remove_form_elasticsearch
      # Do not use ActiveJob here
      __elasticsearch__.delete_document
    end
  end
end
# app/models/physician/elastically_searchable.rb
class Physician
  module ElasticallySearchable
    def elastically_searchable?
      active? && public?
    end
  end
end

ActiveJob to refresh document index

# lib/elasticsearch_support/refresh_document_job.rb
module ElasticsearchSupport
  class RefreshDocumentJob < ActiveJob::Base
    queue_as :default

    def perform(rec)
      if rec.elastically_searchable?
        update_in_elasticsearch(rec)
      else
        remove_from_eleasticsearch(rec)
      end
    end

    private
    def remove_from_eleasticsearch(rec)
      rec.__elasticsearch__.delete_document
    rescue Elasticsearch::Transport::Transport::Errors::NotFound
      # document wasn't found, so don't bother removing it again
    end

    def update_in_elasticsearch(rec)
      rec.__elasticsearch__.update_document
    end
  end
end

One class per search

# app/models/physician/search_to_recommend.rb
class Physician
  class SearchToRecommend

    def call(inquiry, query)
      Physician.__elasticsearch__.search(
        query: {
          filtered: {
            query: query_hash(query),
            filter: filter_hash(inquiry)
          }
        },
        highlight: highlight_hash
      )
    end

    private
    def query_hash(query)
      # logic to return q hash
    end

    def filter_hash(inquiry)
      # logic to return filter hash
    end
  end
end

Reindex

# lib/elasticsearch_support/elastically_searchable_active_record.rb
module ElasticsearchSupport
  module ElasticallySearchableActiveRecord
    included do
      scope "elastically_searchable", -> {
        fail NotImplementedError.new("You must define 'elastically_searchable' class method")
      }
    end
  end
end
# app/models/physician/elastically_searchable.rb
class Physician
  module ElasticallySearchable
    included do
      scope "elastically_searchable", -> { where(state: "active") }
    end
  end
end

REINDEX

# lib/elasticsearch_support/reindex_records.rb
module ElasticsearchSupport
  class ReindexRecords
    def call(klass)
      @klass = klass
      @index_name = [@klass.index_name, start_time.to_s(:number)].join("_")

      create_index!
      import_records!
      create_alias!
    end

    private
    def client
      @klass.__elasticsearch__.client
    end
  end
end
ElasticsearchSupport::ReindexRecords.new.call(Physician)

REINDEX

# lib/elasticsearch_support/reindex_records.rb
module ElasticsearchSupport
  class ReindexRecords

    def create_index!
      @klass.__elasticsearch__.create_index!(index: @index_name, force: true)
    end

  end
end

REINDEX

# lib/elasticsearch_support/reindex_records.rb
module ElasticsearchSupport
  class ReindexRecords

    def import_records!
      @klass.elastically_searchable.find_in_batches(batch_size: 1000) do |group|
        group_for_bulk = group.map do |record|
          { index: { _id: record.id, data: record.as_indexed_json } }
        end
        client.bulk(index: @index_name, type: @klass.to_s.underscore, body: group_for_bulk)
      end
    end

  end
end

REINDEX

# lib/elasticsearch_support/reindex_records.rb
module ElasticsearchSupport
  class ReindexRecords

    def create_alias!
      client.indices.put_alias(index: @index_name, name: @klass.index_name)
      delete_old_aliases!
    end

  end
end

Reindex problem

Reindex problem

Changes during reindex are lost

Reindex Fix

# lib/elasticsearch_support/reindex_records.rb
module ElasticsearchSupport
  class ReindexRecords
    def call(klass)
      @klass = klass
      @index_name = [@klass.index_name, start_time.to_s(:number)].join("_")

      # Start monitoring and persist changes during reindex
      ElasticsearchSupport::ReindexUpdaterStore.start(@klass)
      create_index!
      import_records!
      create_alias!
      # Stop monitoring and update records changed during reindex
      ElasticsearchSupport::ReindexUpdaterStore.stop(@klass)
    end
  end
end
Example using Redis https://gist.github.com/vlado/52d77e12b86579da3728

Reindex Fix

# lib/elasticsearch_support/refresh_document_job.rb
module ElasticsearchSupport
  class RefreshDocumentJob < ActiveJob::Base
    queue_as :default

    def perform(rec)
      # ...
      ElasticsearchSupport::ReindexUpdaterStore.store(record.class, record.id)
    end

  end
end

Testing Elasticsearch

Test server

* Development server
No special setup needed, make sure you use Rails env in index name
* Elasticsearch::Extension::Test
Ruby class for starting and stopping a separate testing in-memory cluster. Few simple steps to setup, should be faster
# spec/support/elasticsearch_test_helpers.rb
module ElasticsearchTestHelpers
  # helpers will be defined here
end
# spec/spec_helper.rb
RSpec.configure do |config|
  config.include ElasticsearchTestHelpers

  config.before(:each) do
    if self.class.metadata[:elasticsearch]
      prepare_elasticsearch
    else
      stub_elasticsearch
    end
  end
end
# spec/support/elasticsearch_test_helpers.rb
def stub_elasticsearch
  stub_request(:any, /.*localhost:9200\/.*/).to_return(body: "{}")
end
# spec/support/elasticsearch_test_helpers.rb
def prepare_elasticsearch
  Physician.__elasticsearch__.create_index!(force: true)
end
require "spec_helper"

describe "Physician", :elasticsearch do
  it "does something" do
    physician = Physician.create({})
    expect(physician).to be_indexed_in_elasticsearch
  end
end

Quick Fix

require "spec_helper"

describe "Physician", :elasticsearch do
  it "does something" do
    physician = Physician.create({})
    sleep 1
    expect(physician).to be_indexed_in_elasticsearch
  end
end

Quick Fix 2

require "spec_helper"

describe "Physician", :elasticsearch do
  it "does something" do
    physician = Physician.create({})
    sleep 2
    expect(physician).to be_indexed_in_elasticsearch
  end
end

Quick Fix 3

require "spec_helper"

describe "Physician", :elasticsearch do
  it "does something" do
    physician = Physician.create({})
    sleep 3
    expect(physician).to be_indexed_in_elasticsearch
  end
end

Hammer Fix

# spec/support/elasticsearch_test_helpers.rb
module ElasticsearchTestHelpers
  def prepare_elasticsearch
    # ...
    $physicians_to_index = []
  end

  def make_sure_physician_changes_are_indexed(&block)
    track_physicians_to_index
    perform_enqueued_jobs { block.call }
    wait_for "elasticsearch to reindex physicians", wait_time: 5.seconds do
      indexed_ids = Physician.__elasticsearch__.search(
        query: { match_all: {} }
      ).map { |res| res._id.to_i }
      $physicians_to_index.uniq.sort == indexed_ids
    end
  end

  private

  def track_physicians_to_index
    return if Physician._commit_callbacks.map(&:filter).include?(:register_elasticsearch_index_state)
    Physician.class_eval do
      after_commit :register_elasticsearch_index_state
      private
      def register_elasticsearch_index_state
        action = elastically_searchable? ? :push : :delete
        $physicians_to_index.send(action, id)
      end
    end
  end
end

Fixed with Hammer

require "spec_helper"

describe "Physician", :elasticsearch do
  it "does something" do
    make_sure_physician_changes_are_indexed do
      physician = Physician.create({})
    end
    expect(physician).to be_indexed_in_elasticsearch
  end
end

REAL FIX

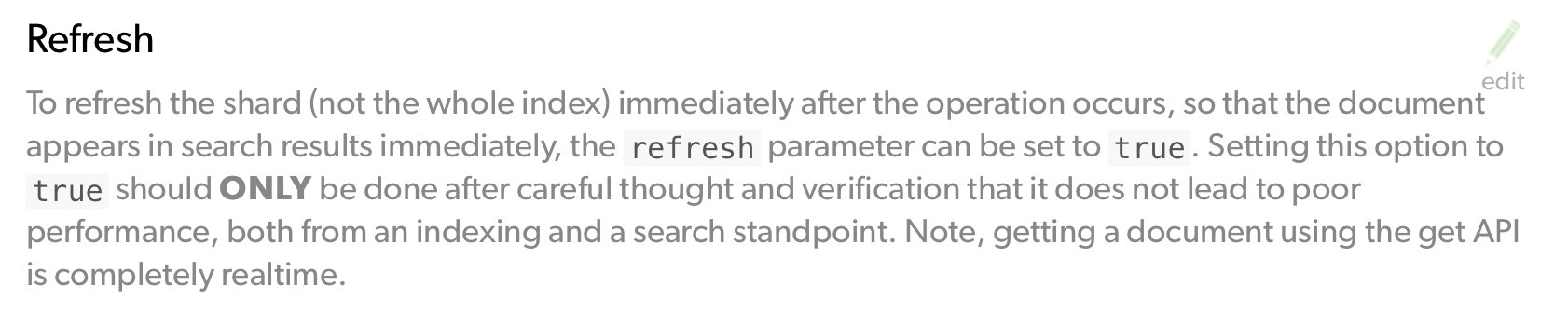

Elasticsearch Index API has Refresh option

https://www.elastic.co/guide/en/elasticsearch/reference/current/docs-index_.html#index-refresh

REAL FIX

# lib/elasticsearch_support/refresh_document_job.rb
module ElasticsearchSupport
  class RefreshDocumentJob < ActiveJob::Base
    queue_as :default

    def perform(rec)
      # ...
    end

    private
    def refresh
      Rails.env.test?
    end

    def remove_from_eleasticsearch(rec)
      rec.__elasticsearch__.delete_document(refresh: refresh)
    rescue Elasticsearch::Transport::Transport::Errors::NotFound
      # document wasn't found, so don't bother removing it again
    end

    def update_in_elasticsearch(rec)
      rec.__elasticsearch__.update_document(refresh: refresh)
    end
  end
end

THANK YOU!

QUESTIONS?

vlado@cingel.hr
